Intramedullary Nailing System

Femoral Interlocking Nails

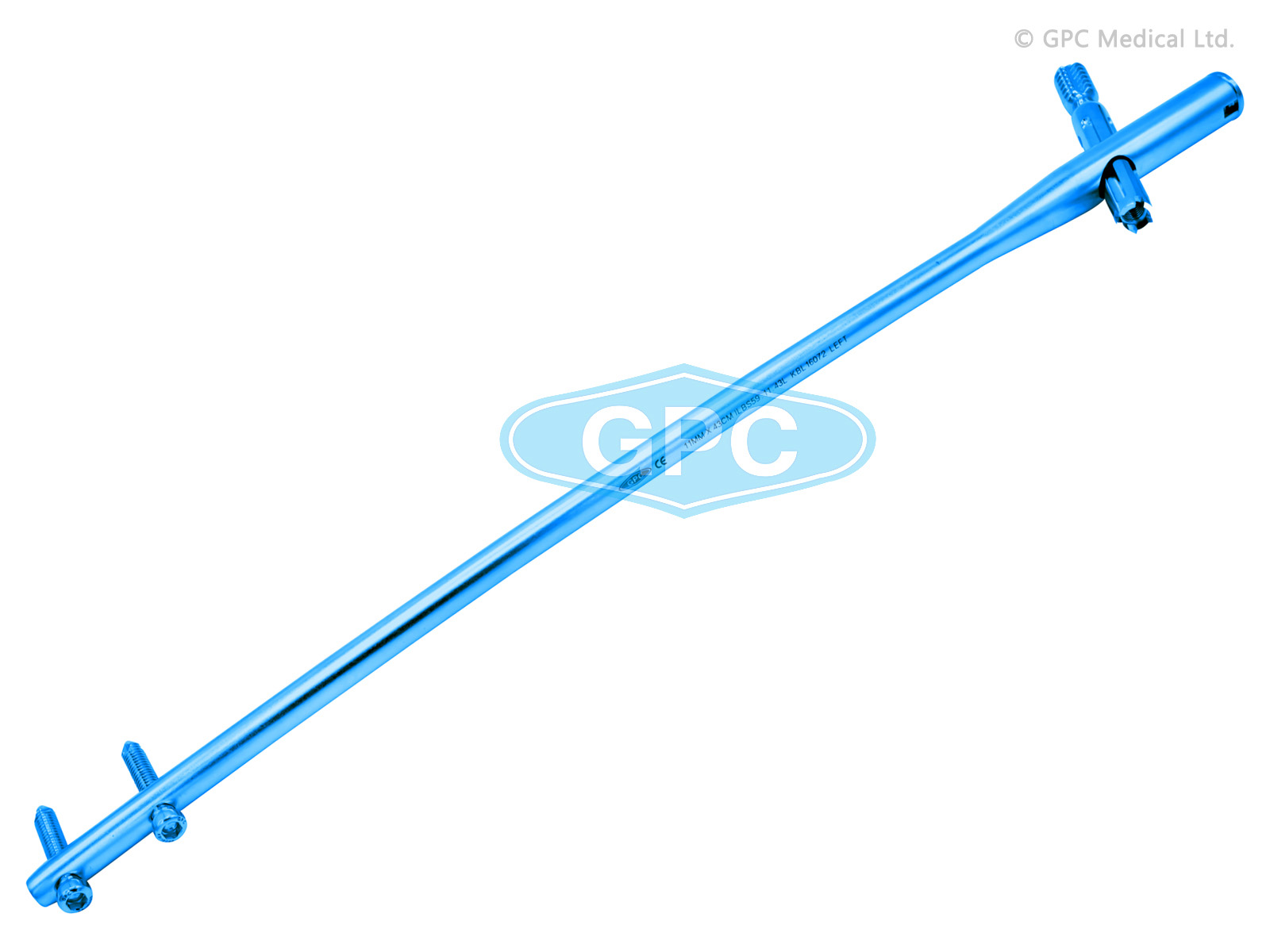

intraHEAL Proximal Hip Stabilizing Nail, Long

Indications:

Basilar neck fracture
Intertrochanteric fracture
Pertrochanteric fracture
Subtrochanteric fracture
Femoral shaft fracture

Specifications

Superior biomechanical intramedullary stabilization
Cannulated nail for guide wire controlled insertion
Set screw to inhibit rotation of the proximal lag screw and simultaneously allowing sliding of the lag screw
Prebent anterior bow to match the anatomy of femur
Separate nail for right & left femur
Range of angles: 125, 130, 135
Two static distal locking options to prevent rotation in complex fracture
Nail length available from 300 mm to 440 mm
Self-tapping lag screw for easy insertion
Available in both titanium and stainless steel

Length (mm)	Code for Dia. (mm) S.S., Left
Length (mm)	10	11	12
300	ILBS59L.10.30L	ILBS59L.11.30L	ILBS59L.12.30L
320	ILBS59L.10.32L	ILBS59L.11.32L	ILBS59L.12.32L
340	ILBS59L.10.34L	ILBS59L.11.34L	ILBS59L.12.34L
360	ILBS59L.10.36L	ILBS59L.11.36L	ILBS59L.12.36L
380	ILBS59L.10.38L	ILBS59L.11.38L	ILBS59L.12.38L
400	ILBS59L.10.40L	ILBS59L.11.40L	ILBS59L.12.40L
420	ILBS59L.10.42L	ILBS59L.11.42L	ILBS59L.12.42L
440	ILBS59L.10.44L	ILBS59L.11.44L	ILBS59L.12.44L

Length (mm)	Code for Dia. (mm) S.S., Right
Length (mm)	10	11	12
300	ILBS59L.10.30R	ILBS59L.11.30R	ILBS59L.12.30R
320	ILBS59L.10.32R	ILBS59L.11.32R	ILBS59L.12.32R
340	ILBS59L.10.34R	ILBS59L.11.34R	ILBS59L.12.34R
360	ILBS59L.10.36R	ILBS59L.11.36R	ILBS59L.12.36R
380	ILBS59L.10.38R	ILBS59L.11.38R	ILBS59L.12.38R
400	ILBS59L.10.40R	ILBS59L.11.40R	ILBS59L.12.40R
420	ILBS59L.10.42R	ILBS59L.11.42R	ILBS59L.12.42R
440	ILBS59L.10.44R	ILBS59L.11.44R	ILBS59L.12.44R

Related Products

intraHEAL Proximal Femoral Nail, Long
Model No:- PFNL09-12
Instrument Set for intraHEAL Proximal Hip Stabilizing Nail 3
Model No:- GOS1463

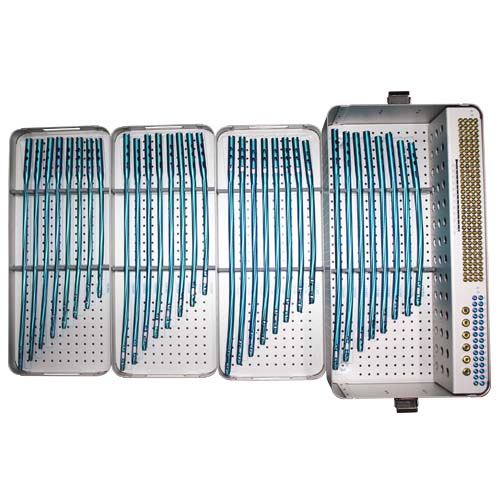

intraHEAL Multi Angle Femoral Nail Implant Set
