Intramedullary Nailing System

Femoral Interlocking Nails

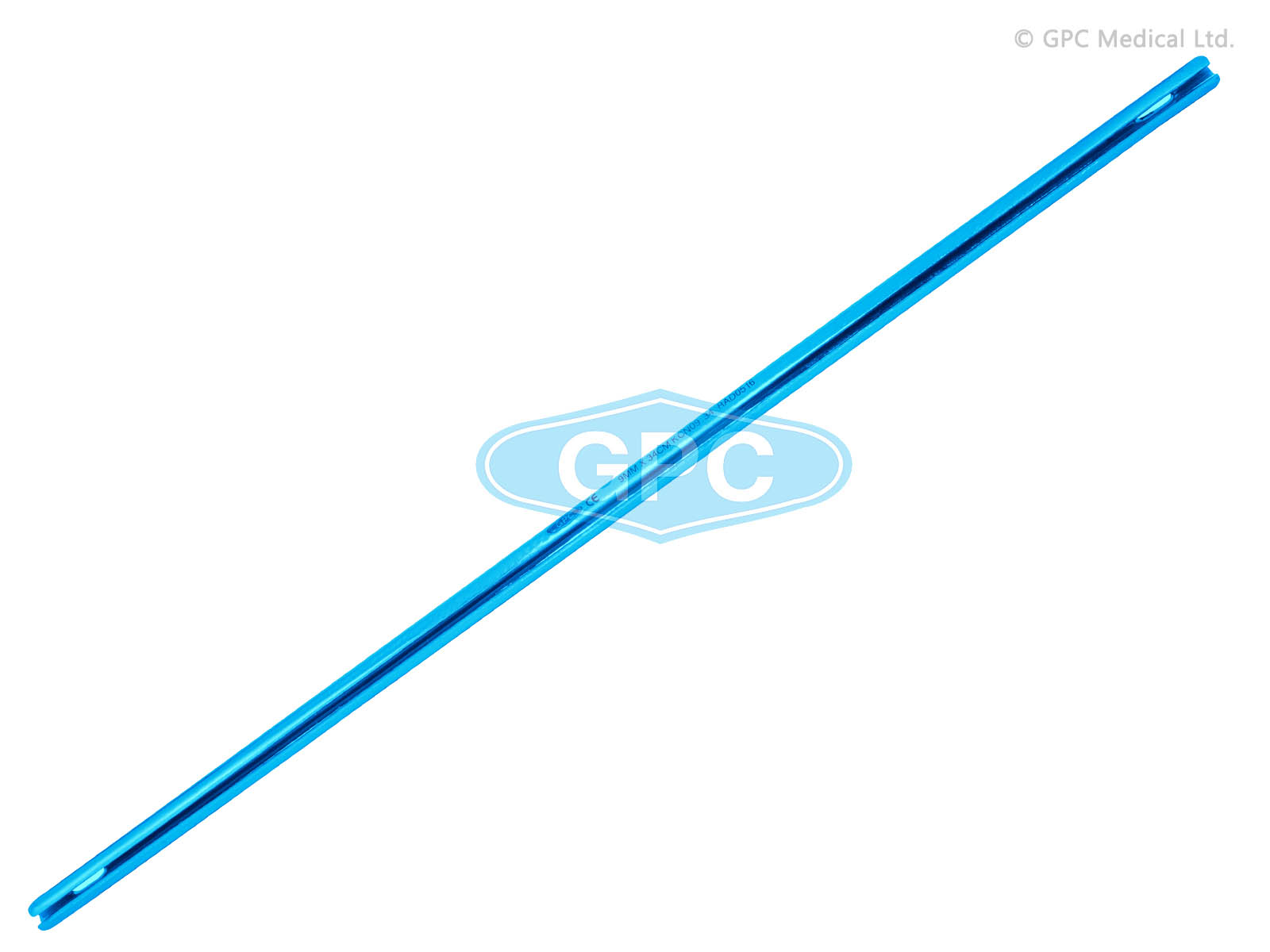

intraHEAL Kuntschers Cloverleaf Nail (K Nail)

Indications:

Transverse fracture shaft of femur (isthmus)
Humerus Fracture

Specifications

Non interlocking nail
Straight nail inserted in a curved bone gives 3-point fixation stability
Clover leaf shaped- open section of the nail gets transversely compressed upon insertion which then exerts reactionary forces and
keeps the fracture stable
Eye at both ends helps in both insertion and extraction of nail
In stable fractures, it provides circumferential compression at the fracture site and transferring axial load to the bone
Reaming increases the area of bone metal interface contact thus increasing grip strength
Solid reamers are used
Does not confer rotational stability

CODE	DIA(mm)	LENGTH (mm)
KCN06.14-KCN06.40	6	14-40(Dif 1cm)
KCN07.14-KCN07.40	7	14-40(Dif 1cm)
KCN08.14-KCN08.40	8	14-40(Dif 1cm)
KCN09.20-KCN09.52	9	20-52(Dif 1cm)
KCN10.20-KCN10.52	10	20-52(Dif 1cm)
KCN11.20-KCN11.52	11	20-52(Dif 1cm)
KCN12.20-KCN12.52	12	20-52(Dif 1cm)
KCN13.20-KCN13.52	13	20-52(Dif 1cm)
KCN14.20-KCN14.52	14	20-52(Dif 1cm)
KCN15.20-KCN15.52	15	20-52(Dif 1cm)
KCN16.20-KCN16.52	16	20-52(Dif 1cm)
KCN17.20-KCN17.52	17	20-52(Dif 1cm)

Instrumentation:
