Intramedullary Nailing System

Femoral Interlocking Nails

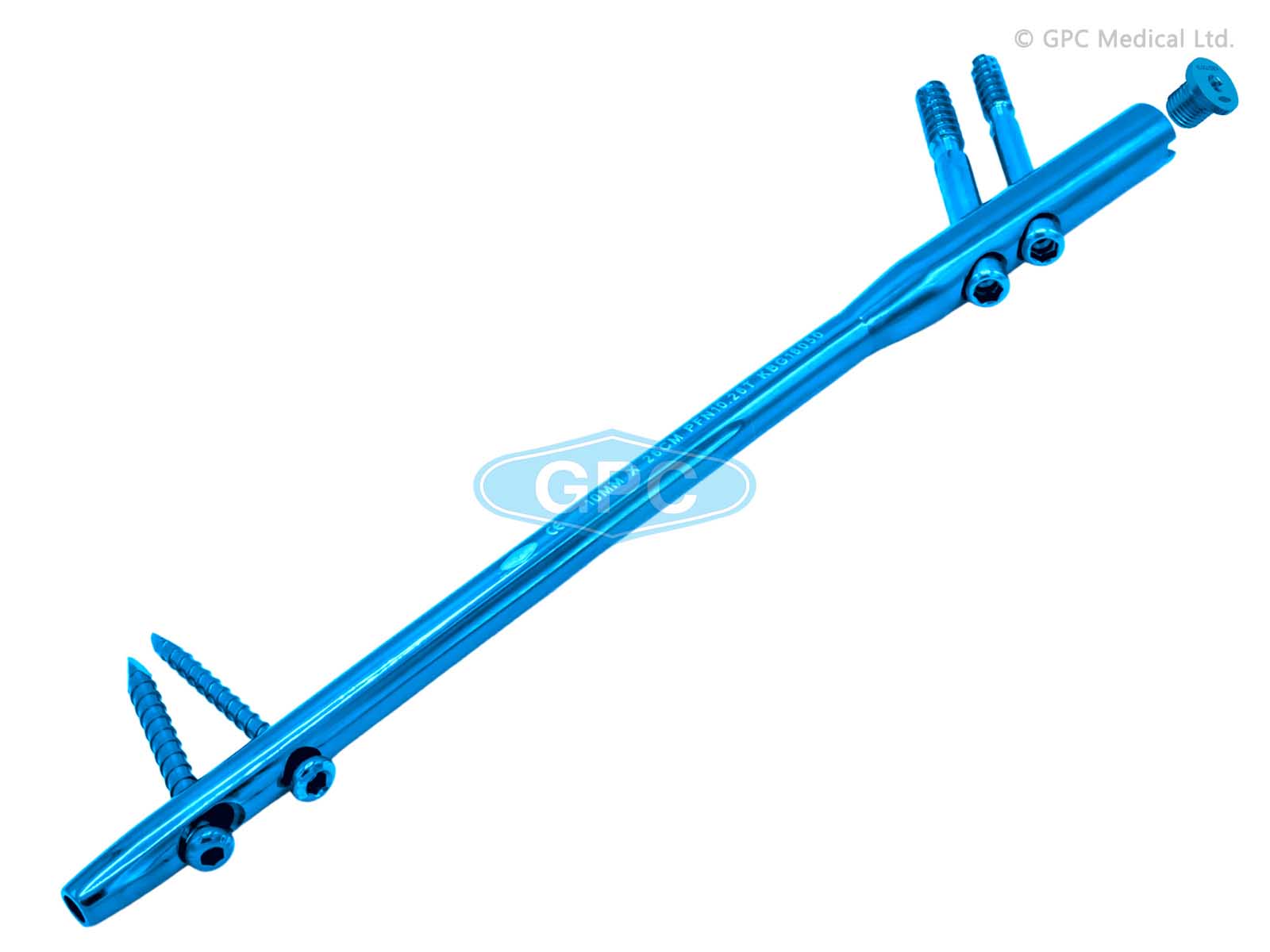

intraHEAL Proximal Femoral Nail

Indications:

Pertrochanteric fractures
Intertrochanteric fractures
High subtrochanteric fractures

Specifications

Features

Double neck screw nail, for increased strength
Mediolateral angle of 6 in accordance with the entry point of the nail
Proximal screws inserted at neck shaft angle of 130 degrees
Proximal dia. 17 mm
Self tapping 6.5 mm cannulated screw (most proximal screw) for rotation stability
Distal dia. 9, 10, 11, 12 mm, enable unreamed insertion
Static & dynamic distal locking options
Universal nail for right & left femur
Available in both titanium & stainless steel

Length (mm)	Code for Dia. (mm) S.S.
Length (mm)	9	10	11	12
220	PFN09.22	PFN10.22	PFN11.22	PFN12.22
240	PFN09.24	PFN10.24	PFN11.24	PFN12.24
260	PFN09.26	PFN10.26	PFN11.26	PFN12.26

Length (mm)	Code for Dia. (mm) Titanium
Length (mm)	9	10	11	12
220	PFN09.22T	PFN10.22T	PFN11.22T	PFN12.22T
240	PFN09.24T	PFN10.24T	PFN11.24T	PFN12.24T
260	PFN09.26T	PFN10.26T	PFN11.26T	PFN12.26T
