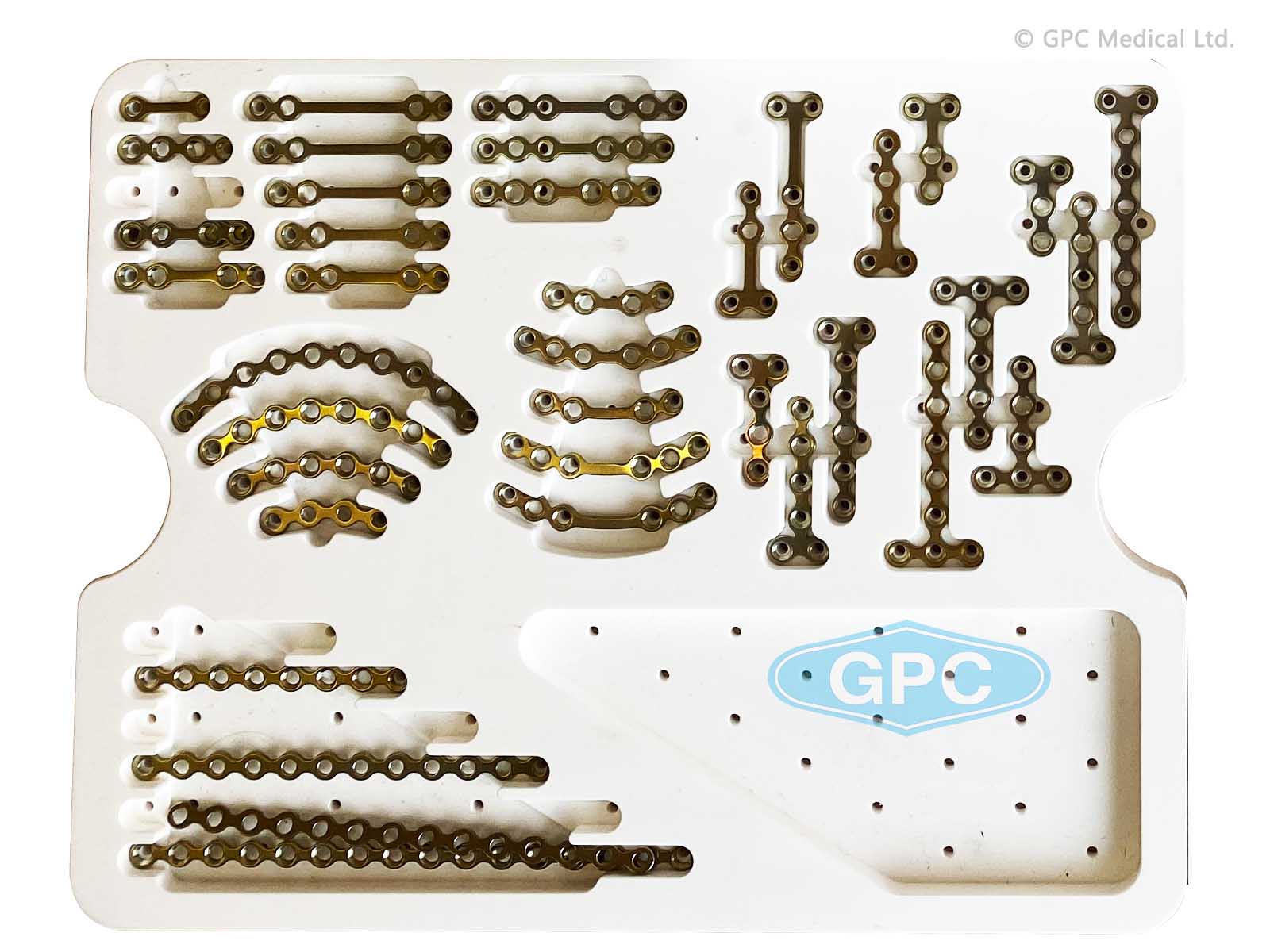

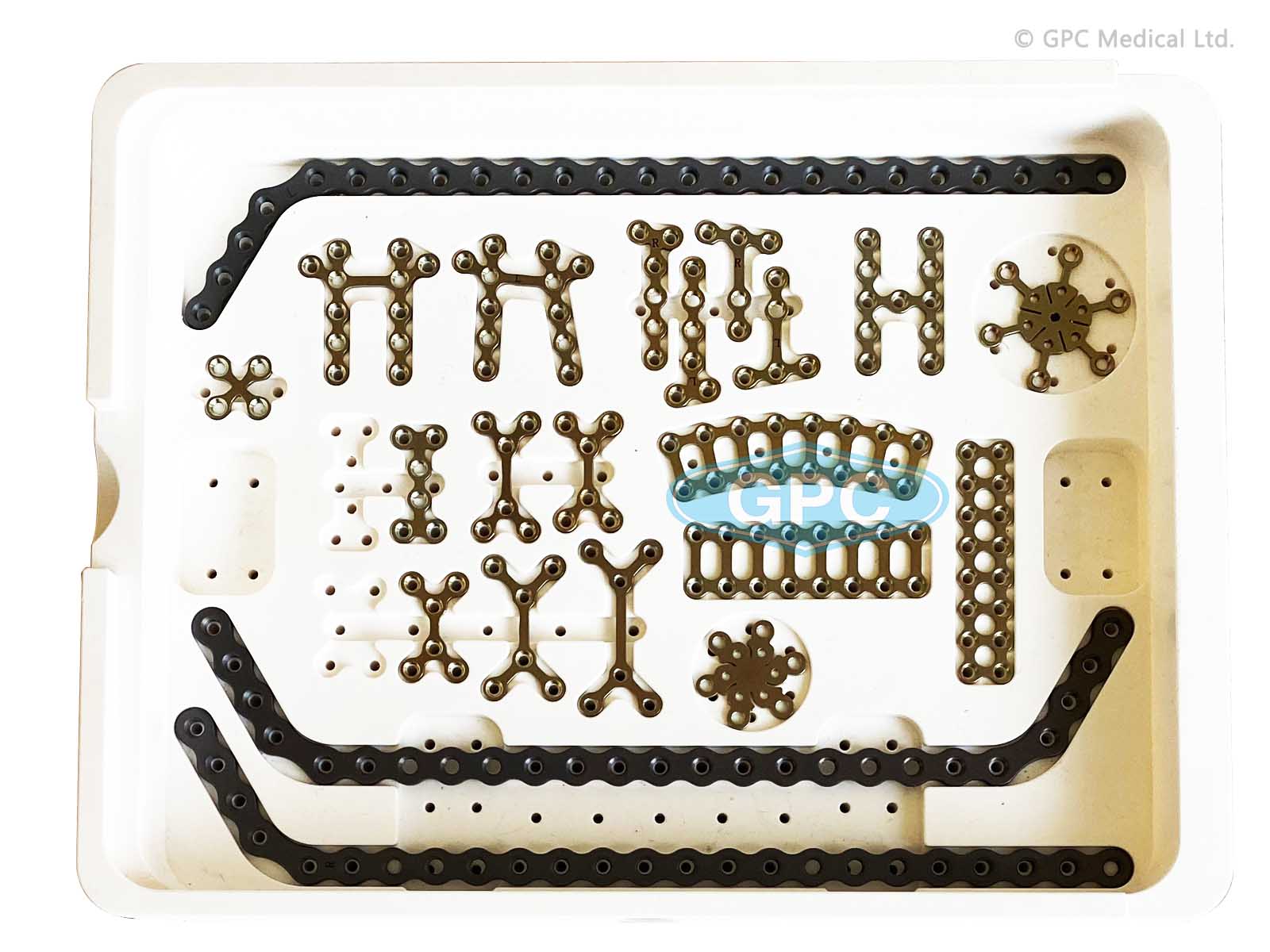

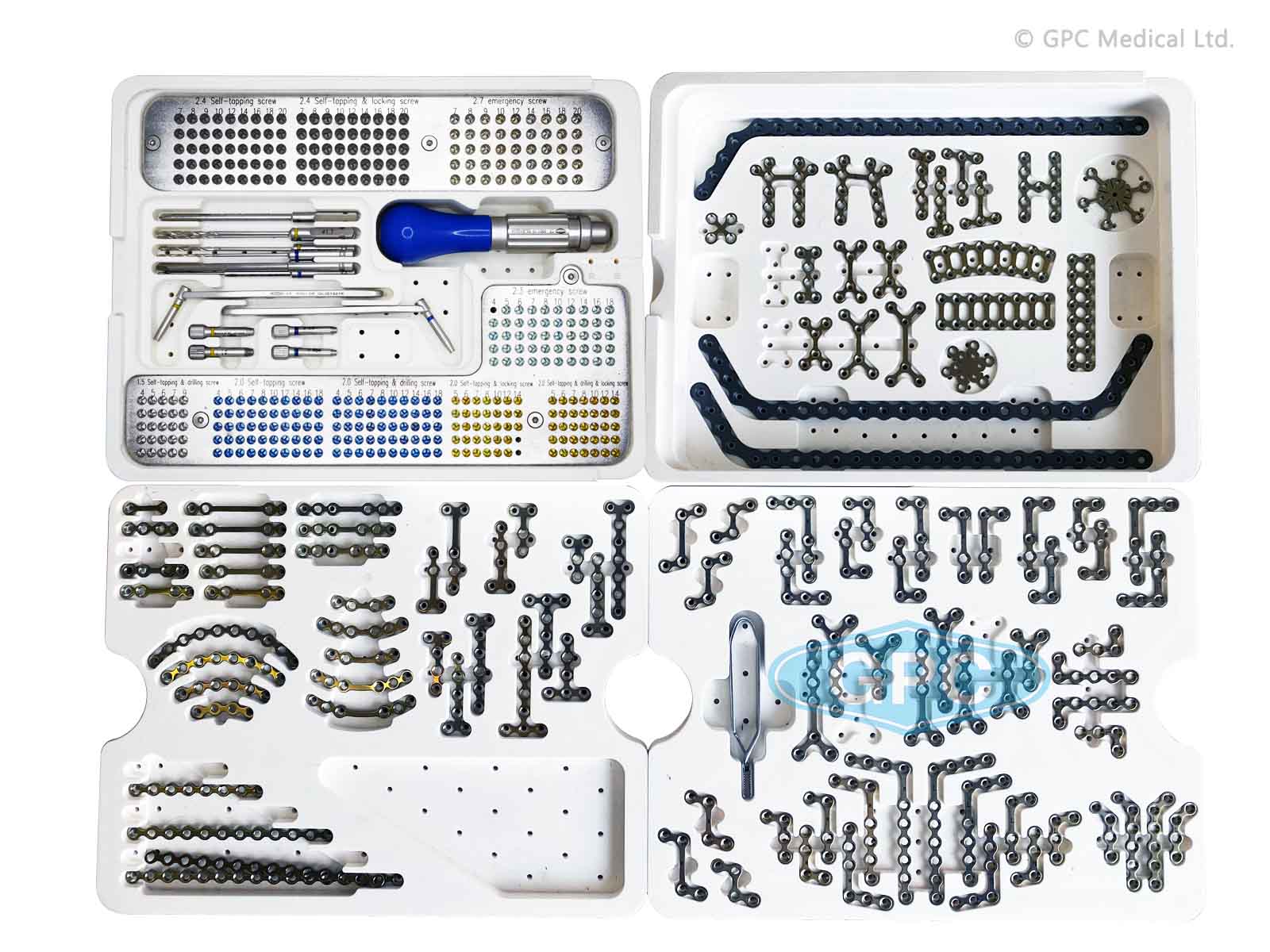

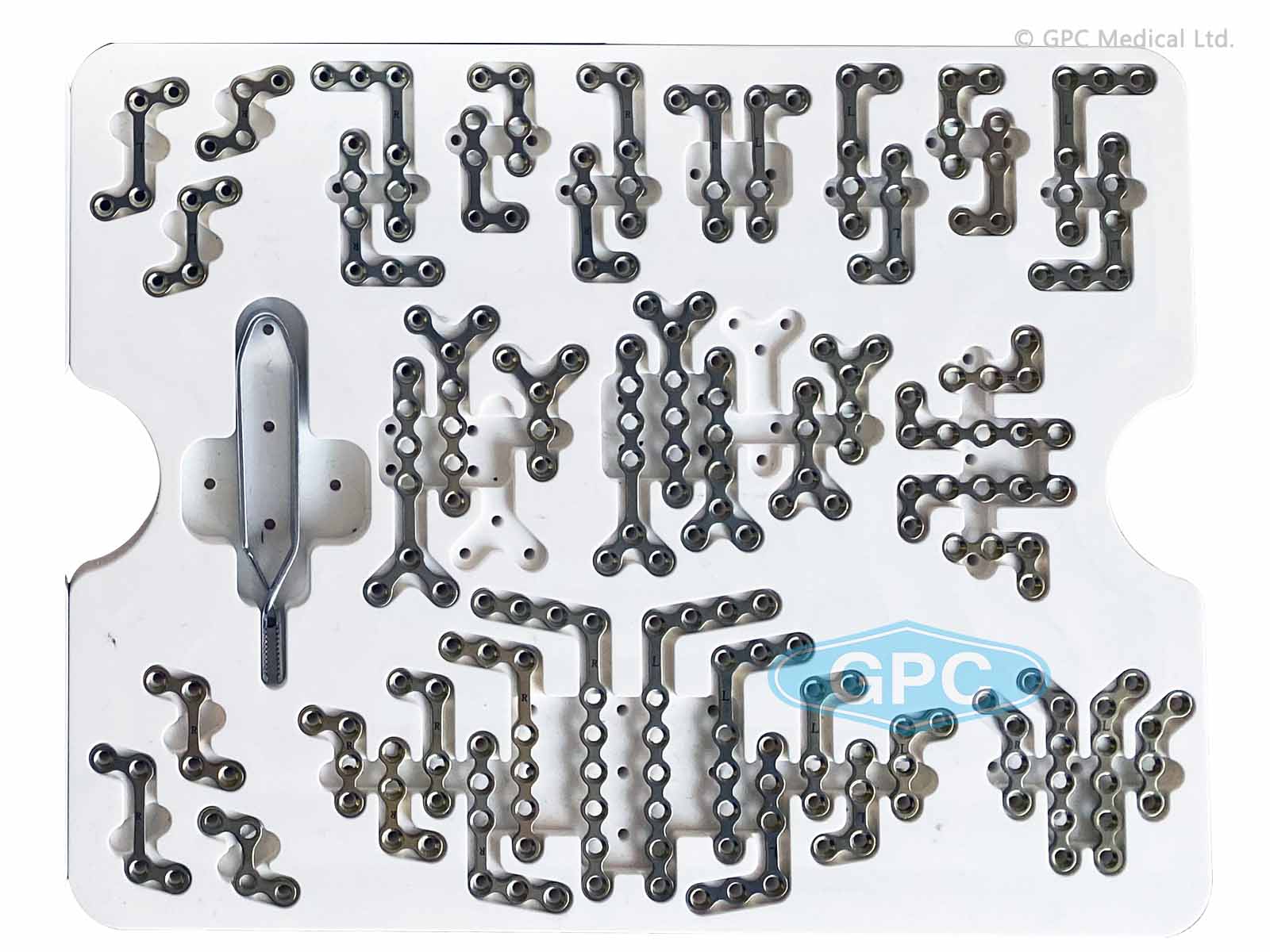

fixLOCK Cranio Maxilofacial 1.5/2.0/2.4mm Implants (TITANIUM) & Instrument Set

Model No: CMF800

GPC fixLOCK CMF System is a comprehensive locking system for internal fixation of Cranium + Midface + Mandible bones. The system comprises of a wide range of locking plates, screws along with the instrumentation. Also available GPC Non-Locking CMF System.

Features

  • Locking plates & screws for stable 'bone-plate' construct.

  • Compact system with all kinds of plates, screws & instruments together.

  • 2.0 mm locking system for all cranial, midface, mandibular plates & 2.4 mm locking system for mandibular reconstruction plates.

  • Low profile plates to minimize soft tissue irritation & implant palpability.

    Thickness of plates- 1.0 mm for cranial & midface & mandibular plates, 2.0 mm for mandibular reconstruction plates.

  • The plates have three dimensional contouring.

  • Choice of self-tapping or self-drilling screws.

  • Single screwdriver works for all screws.

  • Cross slot screw recess.

    Made of titanium alloy.

Specification

CMF800 fixLOCK Cranio Maxilofacial 1.5/2.0/2.4mm Implants (TITANIUM) & Instrument Set
6001 fixLOCK Straight Plate with Gap, 2.0 mm - 2 Holes
6001.12 Length 12 mm 1
6002 fixLOCK Straight Plate with Gap, 2.0 mm - 4 Holes
6002.06 Length 6 mm 1
6002.08 Length 8 mm 1
6002.10 Length 10 mm 1
6002.12 Length 12 mm 1
6002.14 Length 14 mm 1
6002.16 Length 16 mm 1
6002.18 Length 18 mm 1
6002.20 Length 20 mm 1
6002.22 Length 22 mm 1
6003 fixLOCK Straight Plate with Gap, 2.0 mm - 6 Holes
6003.08 Length 8 mm 1
6003.10 Length 10 mm 1
6003.12 Length 12 mm 1
6004 fixLOCK Orbital Plate, 2.0 mm
6004.04 4 Holes 1
6004.06 6 Holes 1
6004.08 8 Holes 1
6004.10 10 Holes  1
6005 fixLOCK Orbital Plate with Gap, 2.0 mm - 4 Holes
6005.08 Length 8 mm 1
6005.12 Length 12 mm 1
6006 fixLOCK Orbital Plate with Gap, 2.0 mm - 6 Holes
6006.08 Length 8 mm 1
6006.12 Length 12 mm 1
6006.15 Length 15 mm 1
6007 fixLOCK Sturt Plate Curved, 2.0 mm
6007.16 16 Holes 1
6008 fixLOCK T-Plate, 2.0 mm with 3 Head Holes
6008.03 3 Holes 1
6008.04 4 Holes 1
6008.06 6 Holes 1
6009 fixLOCK T-Plate Type I, 2.0 mm with 2 Head Holes
6009.03 3 Holes 1
6009.04 4 Holes 1
6009.05 5 Holes 1
6010 fixLOCK T-Plate Type II, 2.0 mm with 2 Head Holes
6010.02 2 Holes 1
6010.04 4 Holes 1
6010.06 6 Holes 1
6011 fixLOCK T-Plate Type III, 2.0 mm with 2 Head Holes and 2 Shaft Holes
6011.08 8 mm 1
6011.12 12 mm 1
6012 fixLOCK T-Plate Type III, 2.0 mm with 2 Head Holes and 3 Shaft Holes
6012.08 8 mm 1
6012.12 12 mm 1
6013 fixLOCK T-Plate Oblique, 2 Holes - Left/Right
6013.04L 4 Holes, Left 1
6013.04R 4 Holes, Right 1
6014 fixLOCK T-Plate Oblique, 3 Head Holes - Left/Right
6014.02L 2 Holes, Left 1
6014.02R 2 Holes, Right 1
6015 fixLOCK X-Plate, 2.0 mm
6015.02 Length 11 mm 1
6016 fixLOCK Double Y-Plate Type I, 2.0 mm, 3+3 Holes
6016.06 Length 6 mm 1
6016.08 Length 8 mm 1
6016.10 Length 10 mm 1
6016.12 Length 12 mm 1
6017 fixLOCK Double Y-Plate Type II, 2.0 mm, 3+3 Holes
6017.12 Length 12 mm 1
6017.18 Length 18 mm 1
6018 fixLOCK H-Plate, 2.0 mm- Left/Right, 6+6 Holes
6018.06L Length 12 mm, Left 1
6018.06R Length 12 mm, Right 1
6019 fixLOCK I-Plate, 2.0 mm
6019.06 Length 6 mm 1
6019.09 Length 9 mm 1
6020.05 fixLOCK H-Plate, Type II, 2.0 mm, 5+1+5 holes 1
6021 fixLOCK Strut straight Plate 2.0 mm, 16 holes
6021.06 Length 6 mm 1
6021.10 Length 10 mm 1
6022.06 fixLOCK Burr Hole Plate 2.0 mm, Type I, 6 Holes  1
6023.06 fixLOCK Burr Hole Plate 2.0 mm, Type II, 6 Holes 1
6024 fixLOCK Z-Plate, 2.0 mm, 2+2 Holes - Left/Right
6024.08L Length 8 mm, Left  1
6024.08R Length 8 mm, Right  1
6024.12L Length 12 mm, Left  1
6024.12R Length 12 mm, Right  1
6024.16L Length 16 mm, Left  1
6024.16R Length 16 mm, Right  1
6025 fixLOCK Y-Plate, Type I, 2.0 mm
6025.06 Length 6 mm 1
6025.12 Length 12 mm 1
6026 fixLOCK Y-Plate, Type II, 2.0 mm, 3 Head Holes and 2 Shaft Holes
6026.06 Stem Length 6 mm 1
6026.08 Stem Length 8 mm 1
6026.12 Stem Length 12 mm 1
6027 fixLOCK Y-Plate, Type II, 2.0 mm, 3 Head Holes and 4 Shaft Holes
6027.06 Stem Length 6 mm 1
6027.08 Stem Length 8 mm 1
6027.12 Stem Length 12 mm 1
6028 fixLOCK L-Plate, Type I, 2.0 mm - Left/Right
6028.02L 2 Holes, Left 1
6028.02R 2 Holes, Right  1
6028.04L 4 Holes, Left 1
6028.04R 4 Holes, Right  1
6029 fixLOCK L-Plate, Type II, 2.0 mm, 2 Head Holes and 2 Shaft Holes - Left/Right
6029.08L Length 8 mm, Left 1
6029.08R Length 8 mm, Right 1
6029.10L Length 10 mm, Left 1
6029.10R Length 10 mm, Right 1
6029.12L Length 12 mm, Left 1
6029.12R Length 12 mm, Right 1
6029.15L Length 15 mm, Left 1
6029.15R Length 15 mm, Right 1
6030 fixLOCK L-Plate, Type II, 2.0 mm, 2 Head Holes and 3 Shaft Holes - Left/Right
6030.12L Length 12 mm, Left 1
6030.12R Length 12 mm, Right 1
6031 fixLOCK L-Plate, Type III, 2.0 mm, 3 Head Holes and 3 Shaft Holes - Left/Right
6031.09L Length 9 mm, Left 1
6031.09R Length 9 mm, Right 1
6031.13L Length 13 mm, Left 1
6031.13R Length 13 mm, Right 1
6032 fixLOCK L-Plate, Oblique 130°, 2.0 mm, 2 Head Holes - Left/Right
6032.02L 2 Holes 1
6032.02R 2 Holes 1
6032.04L 4 Holes 1
6032.04R 4 Holes 1
6033 fixLOCK L-Plate, Oblique 100°, 2.0 mm, 2 Head Holes - Left/Right
6033.06L Length 6 mm, Left  1
6033.06R Length 8 mm, Right  1
6033.08L Length 8 mm, Left  1
6033.08R Length 8 mm, Right  1
6033.12L Length 12 mm, Left  1
6033.12R Length 12 mm, Right  1
6034 fixLOCK L-Plate, Oblique 100°, 2.0 mm, 3 Head Holes - Left/Right
6034.10L Length 10 mm, Left 1
6034.10R Length 10 mm, Right 1
6034.12L Length 12 mm, Left  1
6034.12R Length 12 mm, Right  1
6035 fixLOCK L-Plate, Oblique 100°, 2.0 mm, 4 Head Holes - Left/Right
6035.12L Length 12 mm, Left  1
6035.12R Length 12 mm, Right  1
6036 fixLOCK Straight Plate, 2.0 mm
6036.04 4 Holes 1
6036.06 6 Holes 1
6036.08 8 Holes 1
6036.10 10 Holes 1
6036.12 12 Holes 1
6036.14 14 Holes 1
6036.16 16 Holes 1
6036.18 18 Holes 1
6036.20 20 Holes  1
6037 fixLOCK Mandibular Reconstruction plate, 2.4 mm, 8+17 Holes 1
6038 Angled Reconstruction Plate, 2.4 mm- Left/Right
6038.04L 4+20 Holes, Left 1
6038.04R 4+20 Holes, Right 1
7001 Cortex Screw 1.5 mm, Self Tapping and Self Drilling
7001.04 Length 4 mm 5
7001.05 Length 5 mm 5
7001.06 Length 6 mm 5
7001.07 Length 7 mm 5
7001.09 Length 9 mm 5
7002 Cortex Screw 2.0 mm, Self Tapping
7002.04 Length 4 mm 5
7002.05 Length 5 mm 5
7002.06 Length 6 mm 5
7002.07 Length 7 mm 5
7002.08 Length 8 mm 5
7002.10 Length 10 mm 5
7002.12 Length 12 mm 5
7002.14 Length 14 mm 5
7002.16 Length 16 mm 5
7002.18 Length 18 mm 5
7003 Cortex Screw 2.0 mm, Self Tapping and Self Drilling
7003.04 Length 4 mm 5
7003.05 Length 5 mm 5
7003.06 Length 6 mm 5
7003.07 Length 7 mm 5
7003.08 Length 8 mm 5
7003.10 Length 10 mm 5
7003.12 Length 12 mm 5
7003.14 Length 14 mm 5
7003.16 Length 16 mm 5
7003.18 Length 18 mm 5
7004 fixLOCK Cortex Screw 2.0 mm, Self Tapping
7004.05 Length 5 mm 5
7004.06 Length 6 mm 5
7004.07 Length 7 mm 5
7004.08 Length 8 mm 5
7004.10 Length 10 mm 5
7004.12 Length 12 mm 5
7004.14 Length 14 mm 5
7005 fixLOCK Cortex Screw 2.0 mm, Self Tapping and Self Drilling
7005.05 Length 5 mm 5
7005.06 Length 6 mm 5
7005.07 Length 7 mm 5
7005.08 Length 8 mm 5
7005.10 Length 10 mm 5
7005.12 Length 12 mm 5
7005.14 Length 14 mm 5
7006 Revision Cortex Screw 2.3 mm, Self Tapping
7006.04 Length 4 mm 5
7006.05 Length 5 mm 5
7006.06 Length 6 mm 5
7006.07 Length 7 mm 5
7006.08 Length 8 mm 5
7006.10 Length 10 mm 5
7006.12 Length 12 mm 5
7006.14 Length 14 mm 5
7006.16 Length 16 mm 5
7006.18 Length 18 mm 5
7007 Cortex Screw 2.4 mm, Self Tapping
7007.07 Length 7 mm 5
7007.08 Length 8 mm 5
7007.09 Length 9 mm 5
7007.10 Length 10 mm 5
7007.12 Length 12 mm 5
7007.14 Length 14 mm 5
7007.16 Length 16 mm 5
7007.18 Length 18 mm 5
7007.20 Length 20 mm 5
7008 fixLOCK Cortex Screw 2.4 mm, Self Tapping
7008.07 Length 7 mm 5
7008.08 Length 8 mm 5
7008.09 Length 9 mm 5
7008.10 Length 10 mm 5
7008.12 Length 12 mm 5
7008.14 Length 14 mm 5
7008.16 Length 16 mm 5
7008.18 Length 18 mm 5
7008.20 Length 20 mm 5
7009 Revision Cortex Screw 2.7 mm, Self Tapping
7009.07 Length 7 mm 5
7009.08 Length 8 mm 5
7009.09 Length 9 mm 5
7009.10 Length 10 mm 5
7009.12 Length 12 mm 5
7009.14 Length 14 mm 5
7009.16 Length 16 mm 5
7009.18 Length 18 mm 5
7009.20 Length 20 mm 5

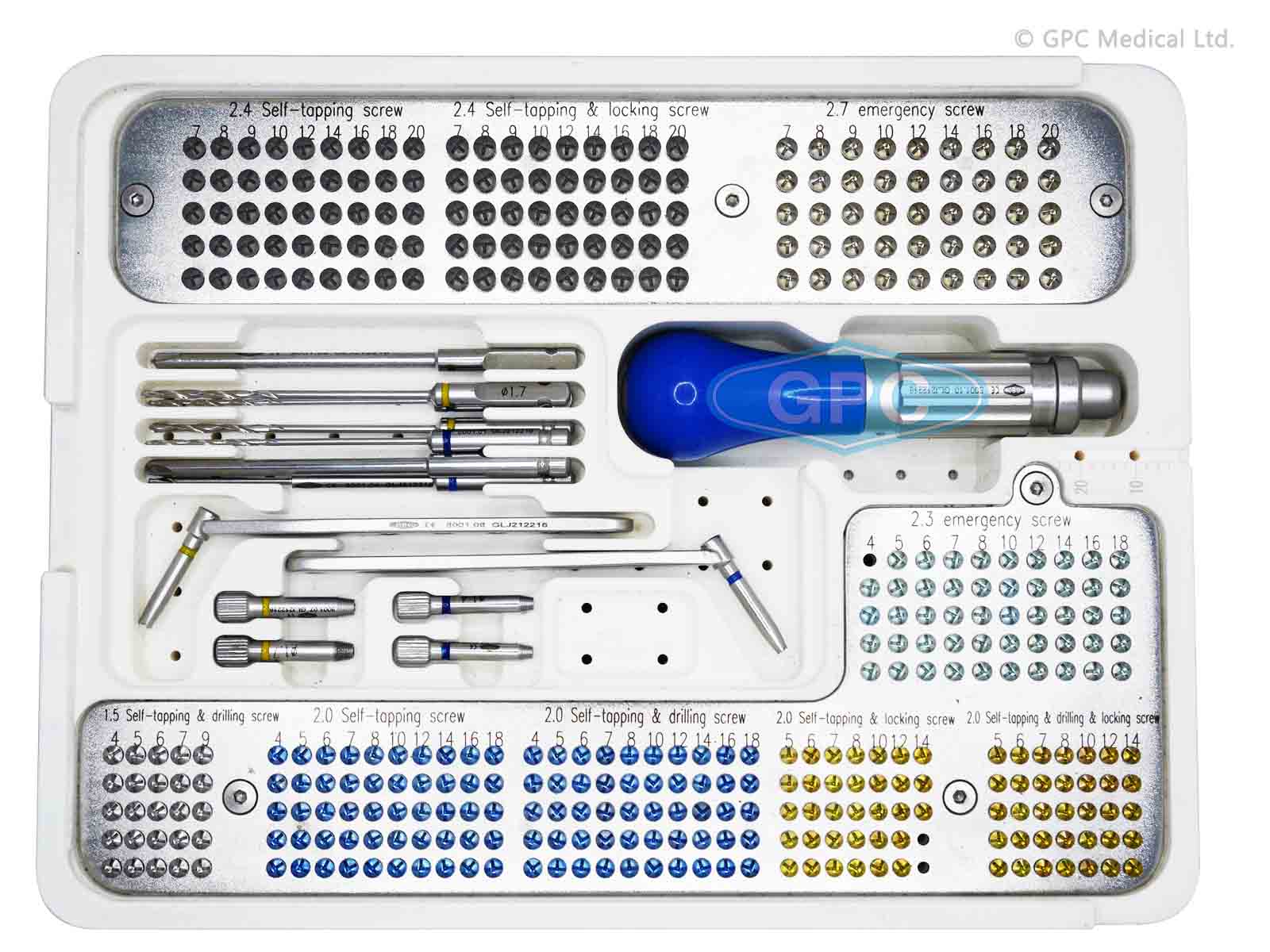

CMF8001 fixLOCK Cranio Maxilofacial 1.5/2.0/2.4mm Instrument Set
  Special Using Instruments & Screws Case:  (PPSU Case-2 Layers) 1
  Maxillofacial LCP Case:  (PPSU Case-3 Layers) 1
8001.01 Drill Bit 1.4 mm 2
8001.02 Drill Sleeve 1.4 mm 2
8001.03 Drill Guide 1.4 mm 1
8001.04 Positioning Drill 1.4 mm x 2.0 mm 1
8001.05 Cross-Head Screwdriver 3.2 mm 1
8001.06 Drill Bit 1.7 mm 2
8001.07 Drill Sleeve 1.7 mm 2
8001.08 Drill Guide 1.7 mm 1
8001.09 Spotting Drill 1.7 x 2.0 mm 1
8001.10 Mini Handle with Quick Coupling 1
8001.11 Screw Forceps, Universal 1
